Auveco No 17516 10-24 Thread Repair Inserts, Quantity 50

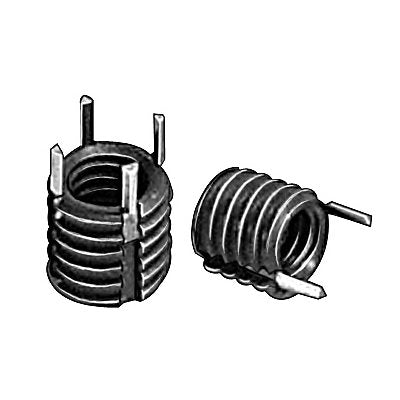

Auveco No. 17516 #10-24 Thread Repair Inserts, Quantity - 50

by Auveco
$191.50
SKU 17516

Ships within 24 hours (M-F)

Description

Product Information

Quantity: 50
Bolt Size: 10-24
Drill Size: I
Length: 5/16 in.
Tap Size: 5/16 in.-18
Made In: USA

Installation:
  1. Drill out old threads, using standard drill.
  2. Tap new threads, using standard tap.
  3. Screw in insert until slightly below surface. “Kees” act as depth stop.
  4. Drive “Kees” down with several light taps on installation tool.

Features:
  • Installed with standard drills and taps.
  • No prewinder tool required.
  • Impossible to cross thread while installing.
  • No tang break-off.
  • May be used in virtually any material: aluminum, magnesium, cast iron, cold rolled steel and plastic.
  • Provide high strength and reliability. One length per size provides maximum pullout strength.
  • Positive mechanical lock against rotation.
  • Breaks Grade 8 bolts in test after test.
  • Easy to remove.
  • Material: Carbon Steel
