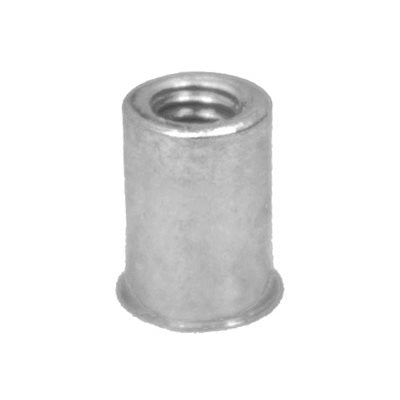

Auveco No. 12981 Metric Thinsheet Nutsert M4-.7, Quantity - 100
Ships within 24 hours (M-F)
Product InformationQuantity: 100
Barrel Diameter: 1.041mm Max.
Class: Type 11, 3
Drill Size: 1/4 in.
Flange Diameter: 7.29mm
Grip Range: 0.508mm - 2.03mm
Hole Size: 6.35mm - 6.45mm
Overall Length: 10.41mm
Screw Size: M4-0.7
Made In: Taiwan
Threaded Inserts for Thin Material: The Auveco Thin Sheet Nutsert has been designed to provide a highly efficient method of securing threads from one side of the work, in materials generally too thin to support threads. Its performance has been proven in plastic, aluminum, mild steel and fiberglass. They can also withstand high loads without vibrating or loosening under extreme operating conditions. The Auveco Thin Sheet Nutsert is a tension fastener with high pull out, insuring no rotation or vibration where a cover plate is used. The system’s unique blind tooling installs TSNs at consistent rates using unskilled labor.
How it Works: The Thin Sheet Nutsert, held securely by the tool, is placed into a prepared hole. Upon the tool’s actuation, the threaded portion is pulled until the fastener’s wall collapses radially outward, clinching it tight against the sheet. The tool is withdrawn, leaving the Thin Sheet Nutsert ready to receive a bolt or screw. This complete operation takes only a few seconds and can be performed by anyone.
Strength Tests: Torque Strength: with an attaching part over the Thin Sheet Nutsert, offering a bearing surface, the TSN will remain intact past the point of the screw or bolt breaking (head torqued off). In almost all cases the threads of the TSN will remain undistorted and serviceable; an exception to this statement is when an extremely high tensile bolt is used.
Steel: 1010 Low Carbon Steel, Type 11 Class 3 with Zinc Plate, Clear Chromate
Aluminum: Aluminum Alloy 5056, Plain Finish, Metric Class 6H, U.S. Class 2B
